Overview

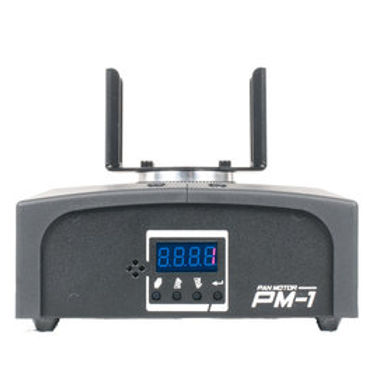

             Antari PM-1


The PM-1™ from Antari is an optional pan motor accessory designed for use with the Antari S-500™ Snow Machine. Install the output nozzle of the S-500 onto the PM-1 to precisely control 120 degrees of pan movement via DMX-512 or manually using the 4-button LED control panel menu display on the unit. It features 2 DMX channel modes, 0-120 degree position index movement and 3 different degree internal auto-pan programs (60°, 90°, 120°) each having 5 speed settings, a pan inversion mode which inverts the pan movement, master/slave modes, 3-pin DMX in/out for easy control connection and linking multiple units, an included mini-omega bracket for clamp/truss mounting, and an auto-switching 100-240V power supply.


Features:

  • 120 Degrees of Pan Movement
  • Manual and DMX-512 Control
  • 2 DMX Channel Modes
  • Master/Slave Modes
  • 60°, 90°, 120° Auto-Pan Programs
  • 5 Auto-Pan Program Speeds
  • Pan Inversion Mode


    • Control / Connections
      • Manual and DMX-512 (2 channel modes)
      • 0-120° Pan Movement
      • Pan Inversion Mode
      • Master/Slave Modes
      • Auto-Pan Programs and Varying Speeds
      • 4-Button Control Panel
      • LED System Menu Display
      • (3) 3pin DMX In/Out
      • AC Power Plug
    • Physical
      • Dimensions (L x W x H): 6.6" x 6.0" x 5.9" (169 x 153 x 151mm)
      • Weight: 4.1 lbs. (1.9 kg)
    • Electrical
      • AC 100-240V 50/60Hz
      • 11W Max Power Consumption
    • Approvals / Ratings:
      • CE | IP20
    Antari PM-1
